Summary of the ExamplesΒΆ
All of the examples can be found in the examples directory.
- artic-truck-crane.lcad - Pulley system creation and animation.

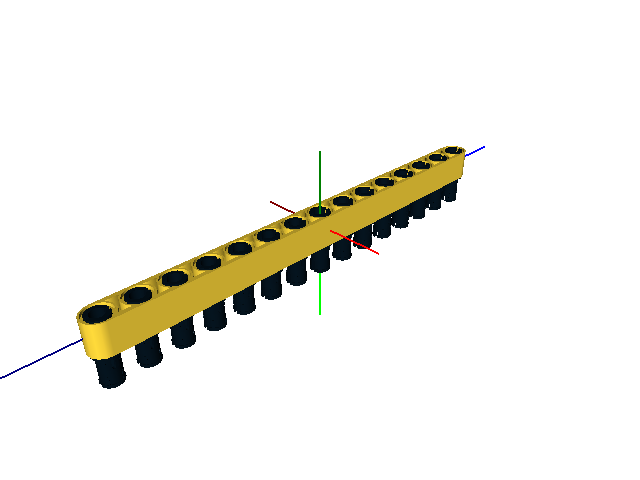

- auto-step.lcad - An automatic build steps example.

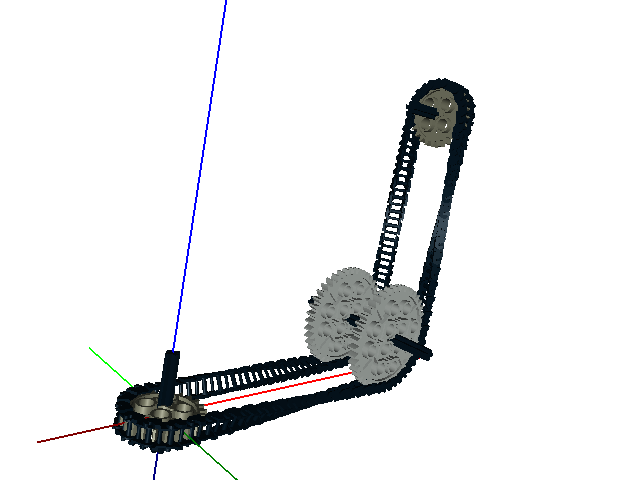

- belt.lcad - 3D chain and sprocket system creation and animation.
- callback.lcad - Using callbacks to add twist to a curve function.
- chain.lcad - 2D chain and sprocket system creation and animation.

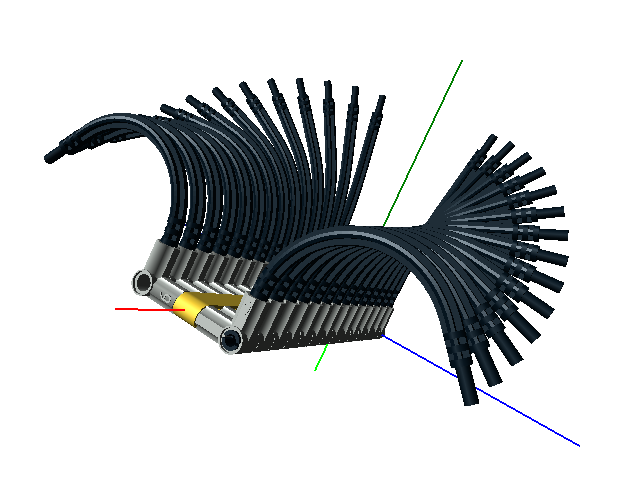

- curve.lcad - Curve creation example.
- dumper-truck.lcad - The Dumper Truck example from here.
- gears.lcad - An animation example.

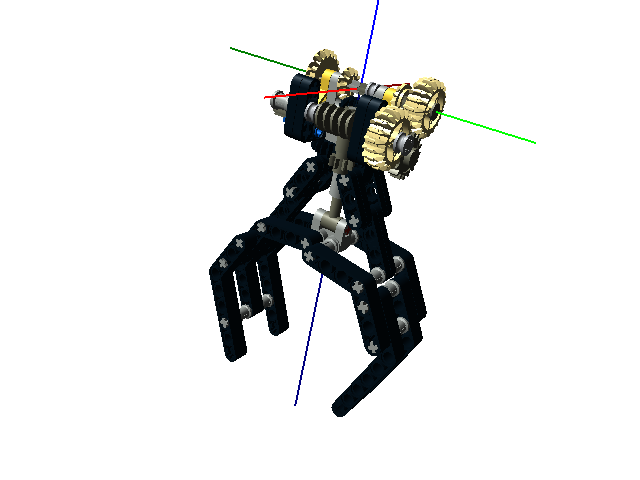

- gripper.lcad - A gripper, original design by Efferman from here.

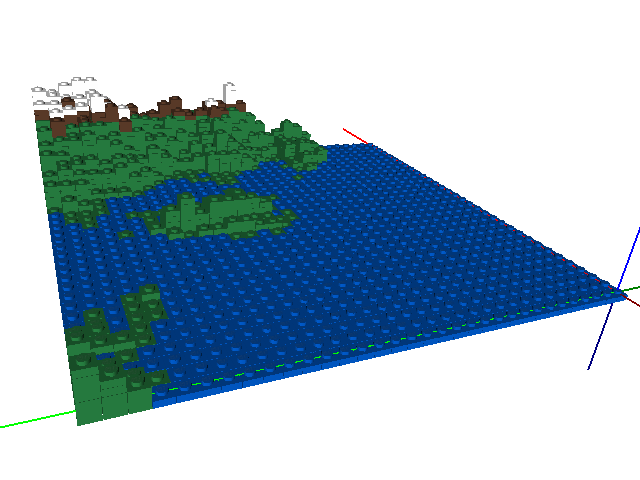

- landscape.lcad - Create a model from a simple space delimited text file.

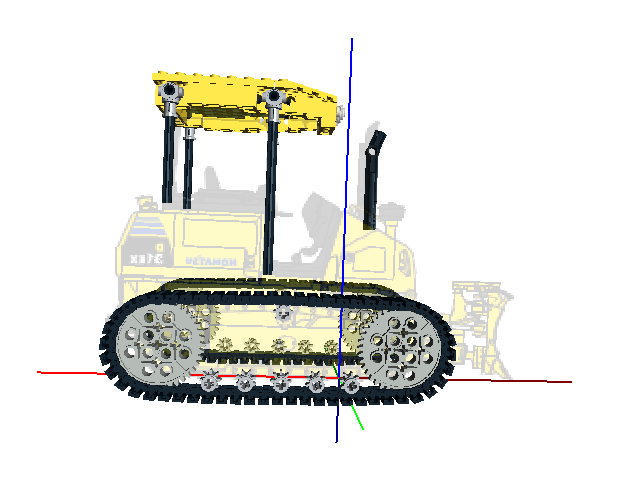

- overlay.lcad - Overlay pictures / blueprints for model scaling.
- picture.lcad - Interfacing with Python example.

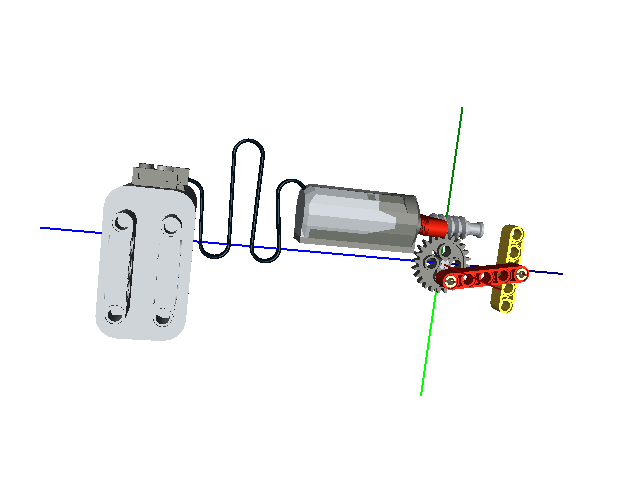

- power-functions-cable.lcad - 4 Wire power functions cable creation and animation.

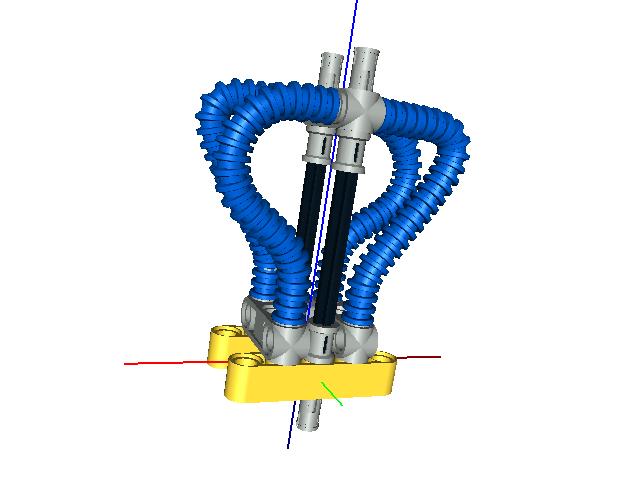

- rib-hose.lcad - Curves and ribbed-hose example.
- steps.lcad - A build steps example.

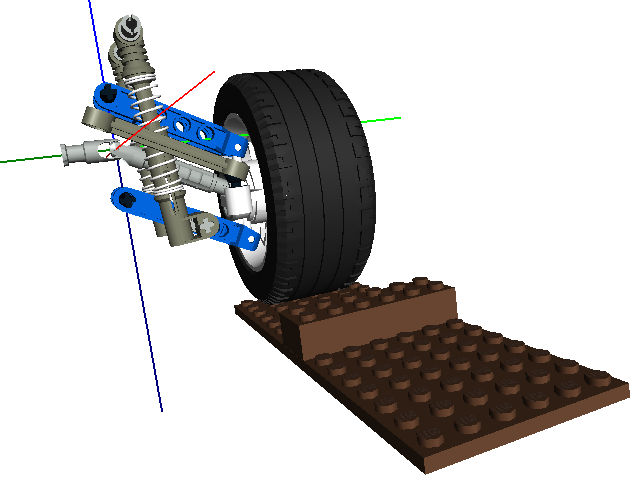

- suspension.lcad - A spring creation and animation example.

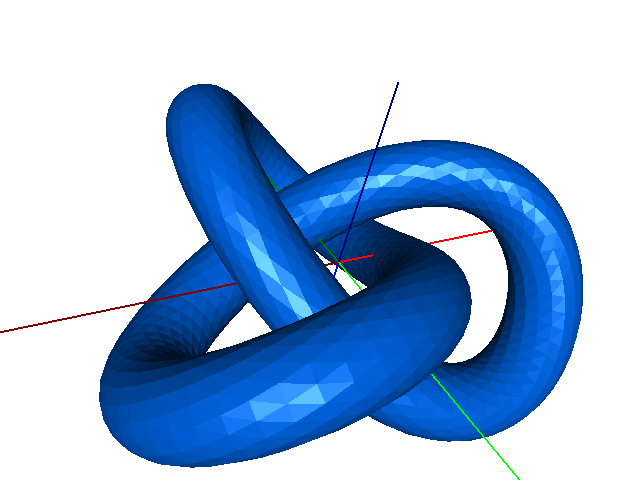

- trefoil.lcad - A LDraw primitives example.
- wall.lcad - A random number generator example.
